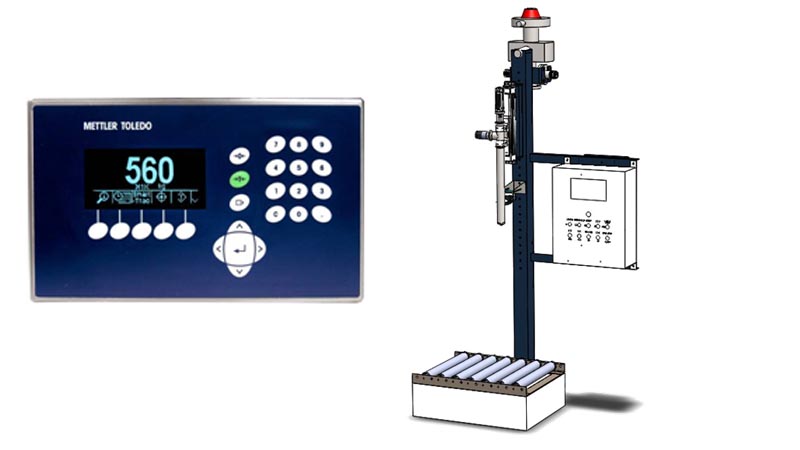

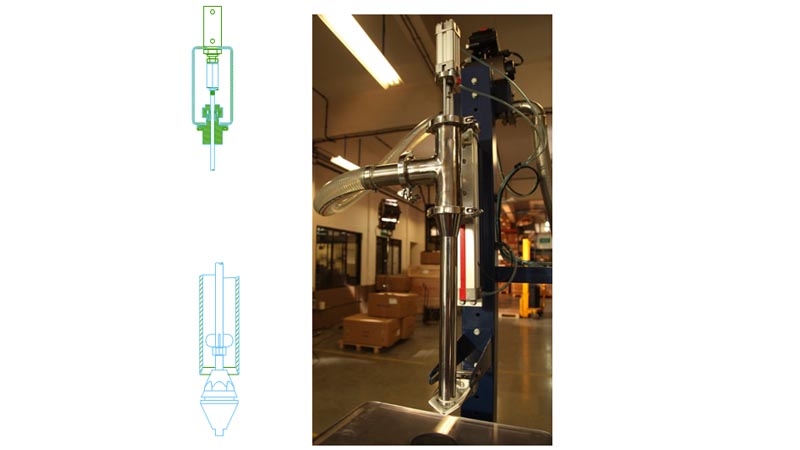

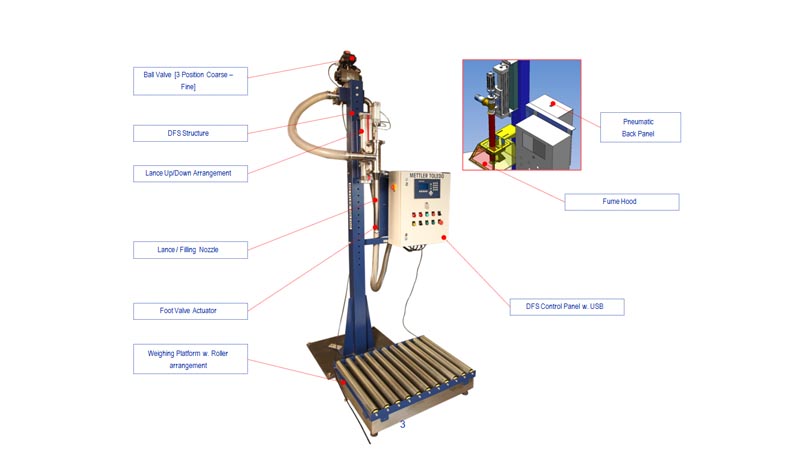

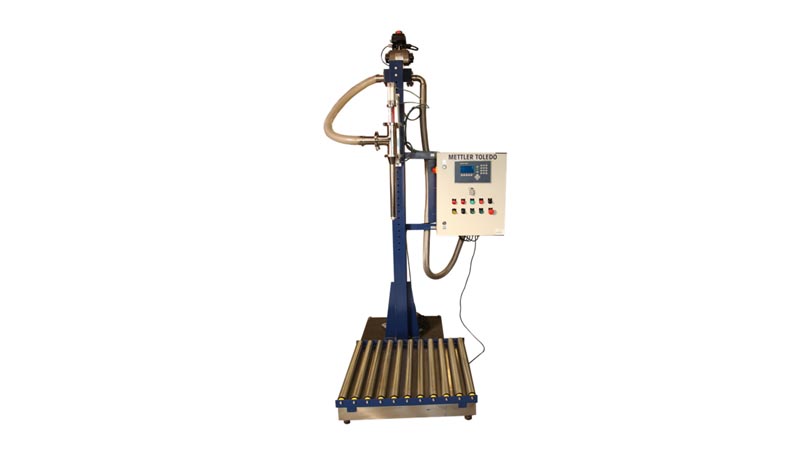

i-DFS – Electronic Features

Best in Class Filling Controller

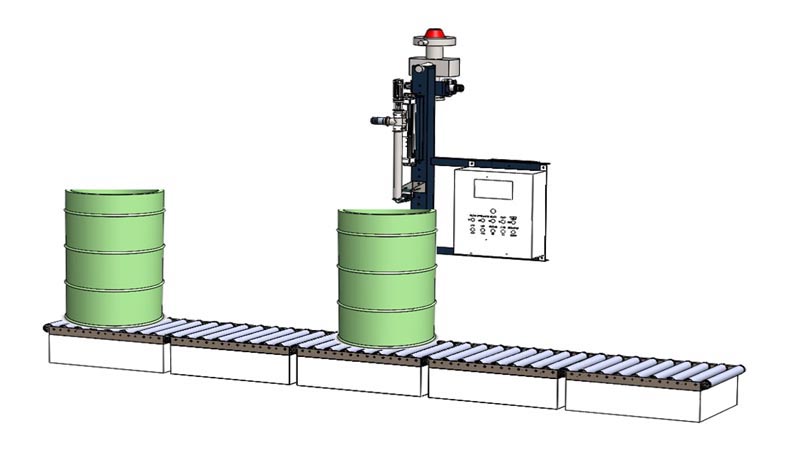

Manual, Semi-automatic and Automatic Filling Control

Ultra fast A/D conversion rate of 366 Hz

TraxDSP™ filtering, CalFree™ calibration method

Various PLC Connectivity Option: Profibus® DP, Analog Output, etc.

Digital I/O: 12 in/18 out

Display: Active VFD dot matrix for Sharp Display

Recipe: More than 50nos

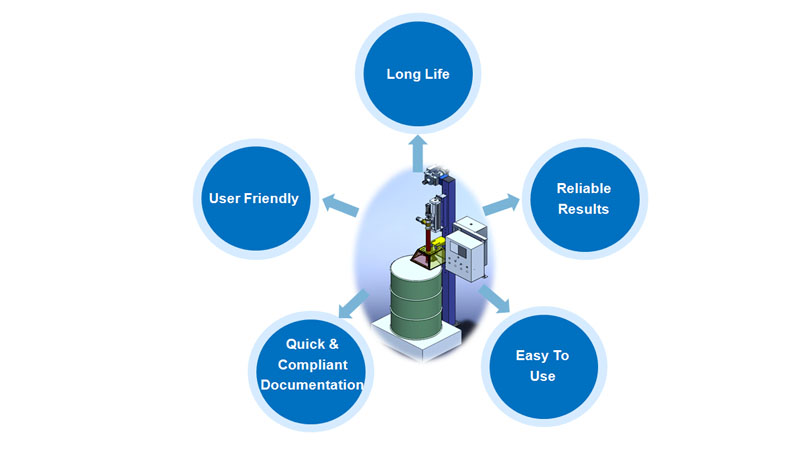

i-DFS – Reason to buy

3E Advantage:

• Easy to Install
• Easy to operate
• Easy to maintain.

3E Benefit:

• Quick installation and ready to deploy solution.
• Min. operational understanding required, hence limited operator dependency.
• Quick recovery from downtime
• Min spares required hence low cost of maintenance.

Peripheral

Accessories Portfolio

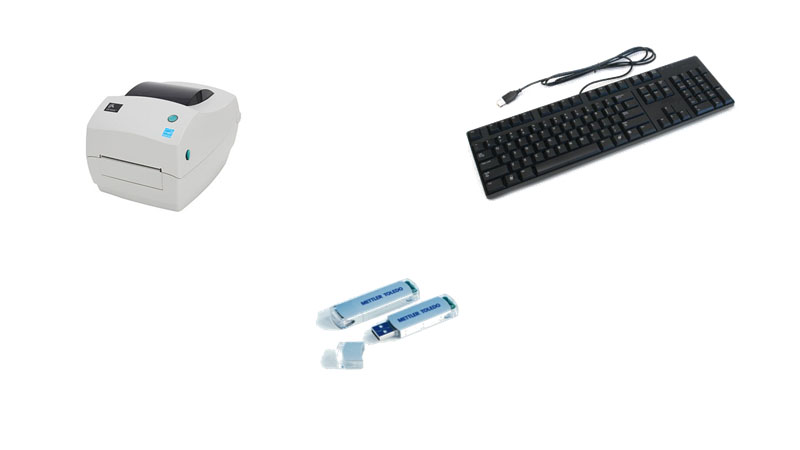

Data Transfer:

• PLC Communication
• USB
• Printer
• Data Entry Device
• USB Keyboard

i-DFS – Data Transfer System Architecture

Removes rough grease.

Shines the vessels.

No scratches formed on the vessels cleaned.

Gentle on hand and Easy to wash.

Directions for use:

Indus-I7 Dish Wash Liquid in 1.5 ratio with water, take scrub pad dip in the liquid and use it. For hard stains use 1:1 ratio

Caution:

The product is mildly alkaline, not requiring any safety wear in handling and use. However, for sensitive skins, protective gloves are recommended. In case of contact with eyes, wash with plenty of water and seek medical advice.

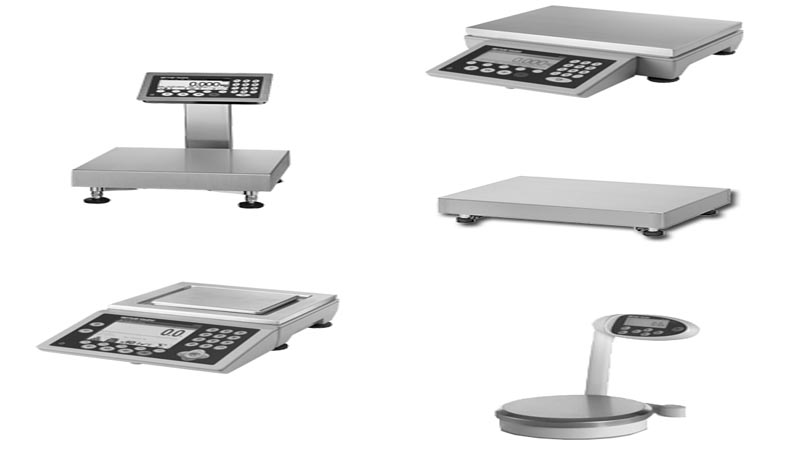

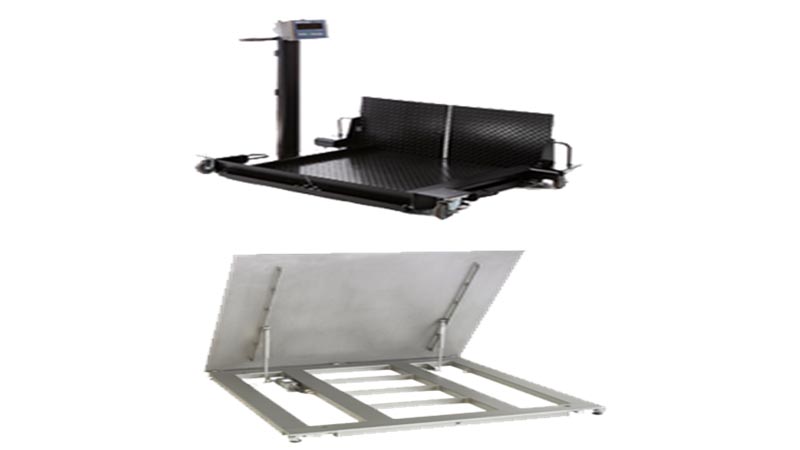

Bench Scales & Portable Scales

Compact Scales are Highly Accurate Scales. Monobloc Technology. .

Hi-End Measurement Technology.

Minimum Process tolerance or loss of Material.

Long lifetime due to Ingress Protection(IP). Available in SS & MS Material of Construction.

Can be used for Rugged Industrial weighing. Best Practice in Piece Counting.

Free Webinar on Accurate weighing in the Pharmaceutical and Chemical Industry.

Scales for Dry and Dusty Environment. Scales for Wet & Harsh Environment.

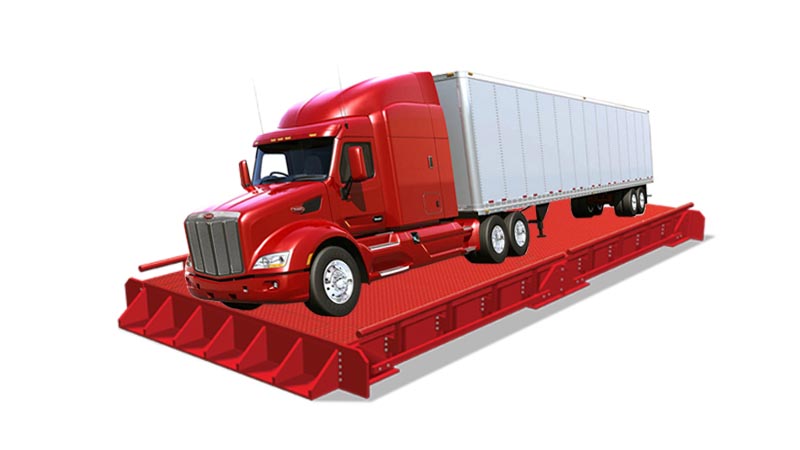

Truck Scales

Designed for Very Rugged Applications .

Available in Pit & Pitless models.

Advanced technology with Data Backup Facility.

User friendly "e-Bridge" software.

Self restore technology Entry permit for both sides.

Patent Designed Rocker Pin Compression Load Cells.

Available in Concrete Deck & Steel Deck Models.

Suitable for all atmospheres like, Dusty, Lightning, Hi Humidity conditions , Low & Hi Temperature conditions

Weight in Motion (WIM) Technology.

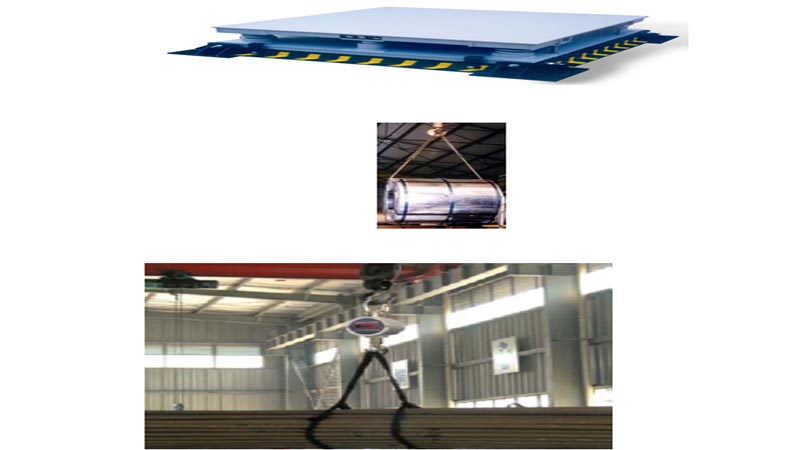

Heavy Duty Scales

Designed for Heavy Duty Applications .

Available in Coil Scale, Crane Scale models.

Advanced technology with Remote Operation Facility.

Battery Backup for Crane Scales

Cranes Scales Available in two types

1.Integrate Scale & Wireless Crane Scale

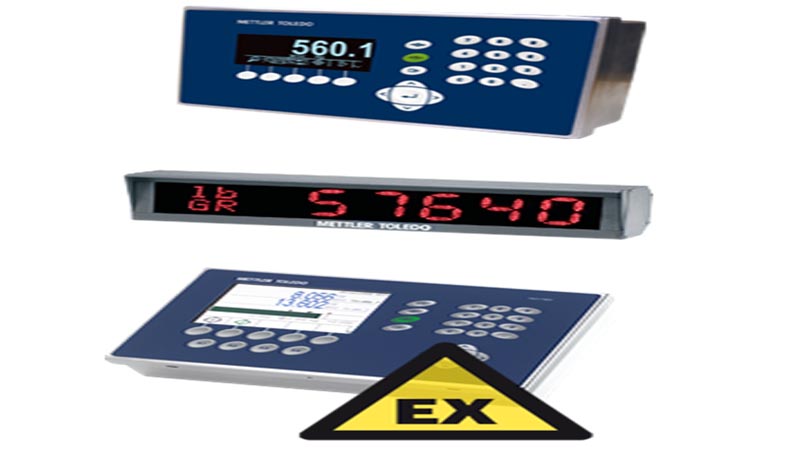

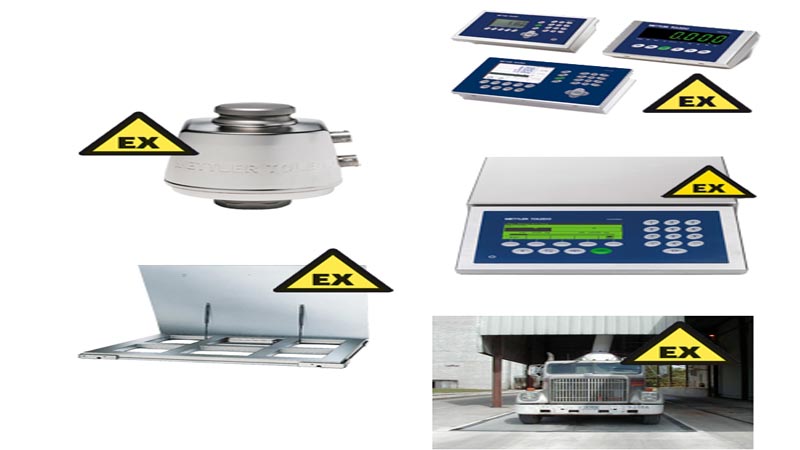

Hazardous Area Scales

Specially Designed for Applications in Hazardous area like Pharma, Chemical, Dusty Environments.

ATEX Approved Versions.

Designed for Rugged Applications.

Designed for Highest Accuracy with Overload Protection.

Can be used in Zone 1& 2.

Ingress Protection for prevention of Dust and Water.

Totally Flame Proof Enclosing Modules.

Designed for Intrinsic Safe Methods.

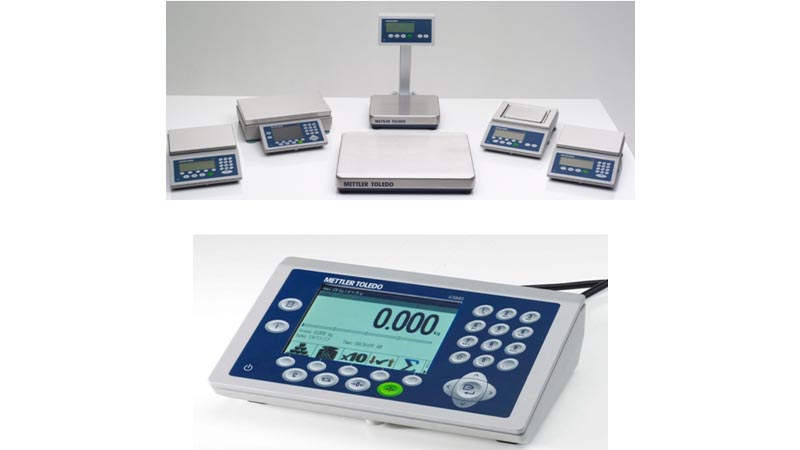

Weighing Scale Terminals

METTLER TOLEDO weighing terminals are used in a broad variety industrial applications, ranging from basic weighing to advanced applications that integrate with control systems, factory networks, and other peripheral equipment.

As technological innovations continue to revolutionize all industries and requirements such as total cost of ownership, return on investment, and ease of integration become more important, we will continue to develop terminals that help you achieve your objectives.

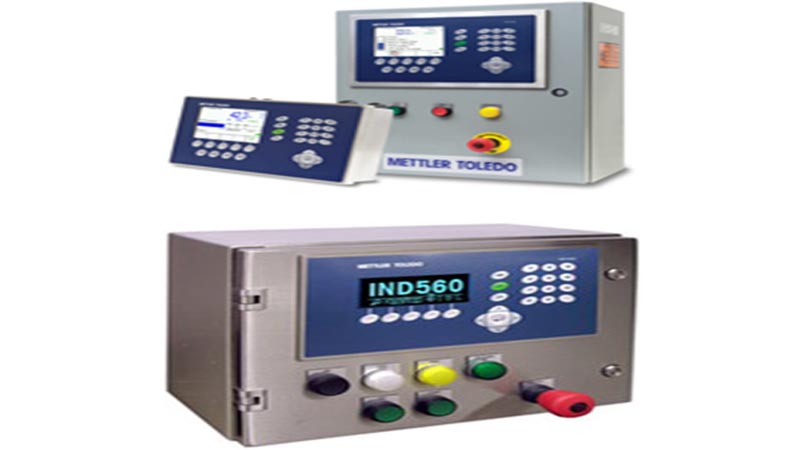

Batching Solutions

Batching solutions for maximizing efficiency and profits:

The slightest variation in delivered ingredients can mean ruined batches, while repeatable adherence to a formula delivers profits.

Automated, semi-automatic, and manual batching controllers and custom material-transfer control solutions can enhance batch quality and profits.

Fast, accurate, and always reliable, our controllers can be combined with high-performance scale bases, weigh modules or measuring cells to provide a complete batching application solution.

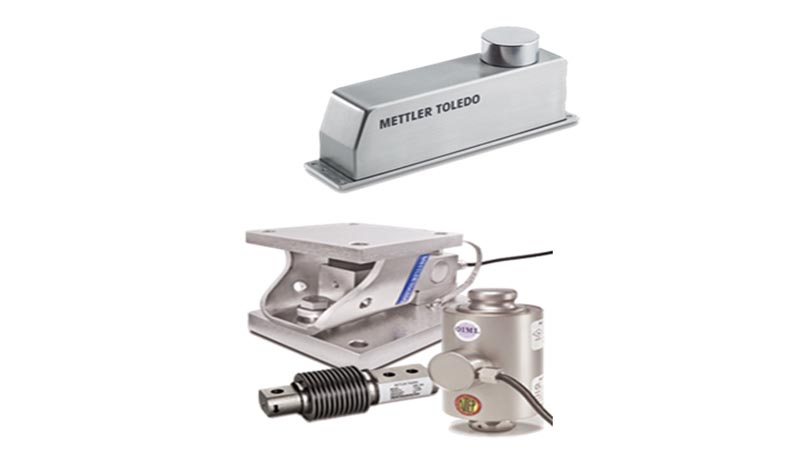

Weigh Modules, Load Cells, Weight Sensors

Easy to integrate due to slim and off-center position of Load Plate.

Over Load Protection.

Fast weight control as well as filling and dispensing application in Automation.

Compression Weigh modules are enable the quick and safe conversion of a tank or conveyor system into a Scale.

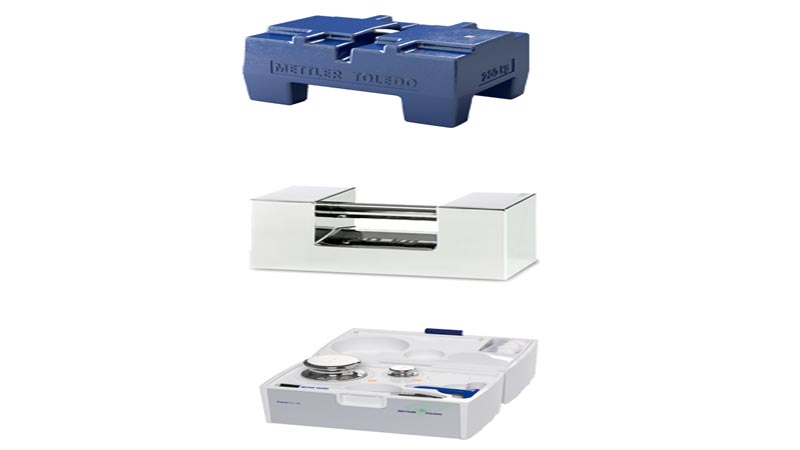

Test Weights

Grip Handle Weights as per OIML Standards.

Stainless Steel, High Gloss Finish Density 7.9kg/dm3

Available in Cylindrical Shapes.

Available form 1Kg to 5000Kg.

Standardized design to fit all Forklifts.

Given 4 Handles for easy Crane Operations.

Each Weight .

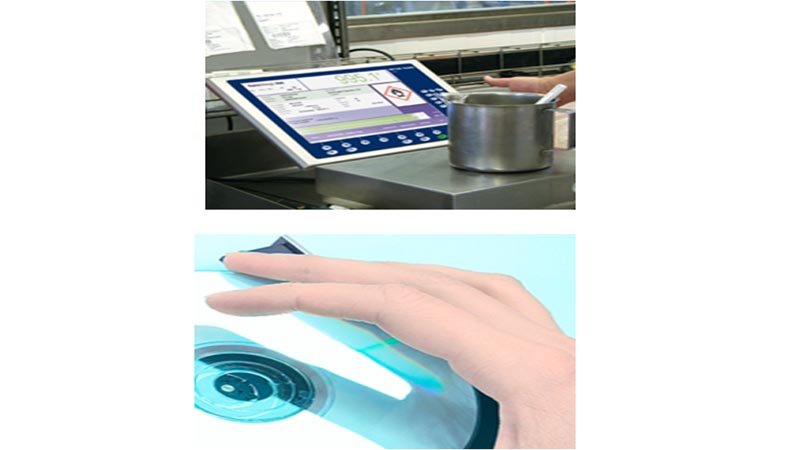

Software

The flexible and highly configurable PC Based software provides Powerful Functions for data acquisition.

The Networked Quality Assurance system with virtually no limits in expandability!

Statistical Quality Control.

Improve the process and save the money.

Printers

Designed for reliability.

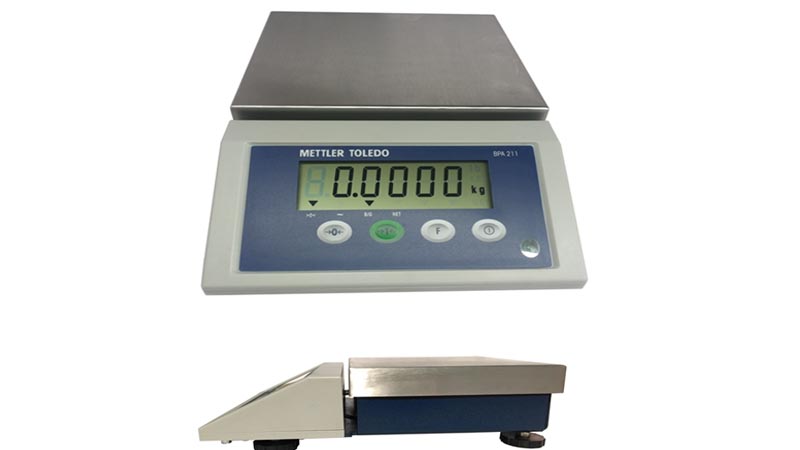

BPA 211 – Main Features

7digits, 25 mm high LCD Display with LED backlight

Four mechanical keys: Zero, Tare, Function, On/off

Display increments: 1,000 - 15,000d

A/D update rate: 10 times per second

Power-Supply: 230 V AC SMPS Power Converter

Available Capacities: 3 kg-15 kg

Carbon steel stand, painted.

The base frame is powder coated construction

Top plate( weighing pan) is Stainless steel

Basic function: Zero, Tare, Simple weighing

Unit switch: kg, g, lb, oz

Geo adjustment

RS232 Interface is available as an option

Power saving mode:

• Auto backlight time out
• Auto power off
• Auto terminal sleeping

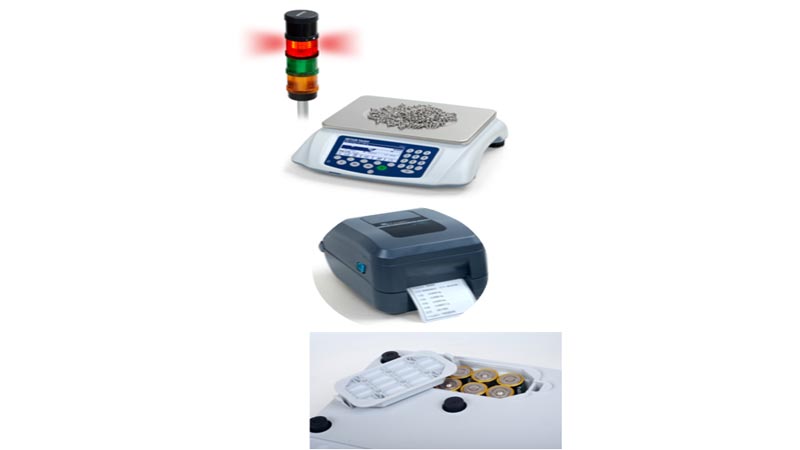

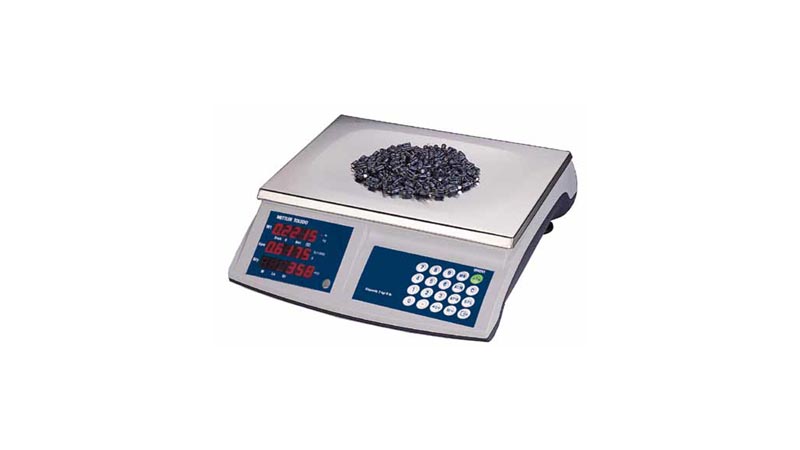

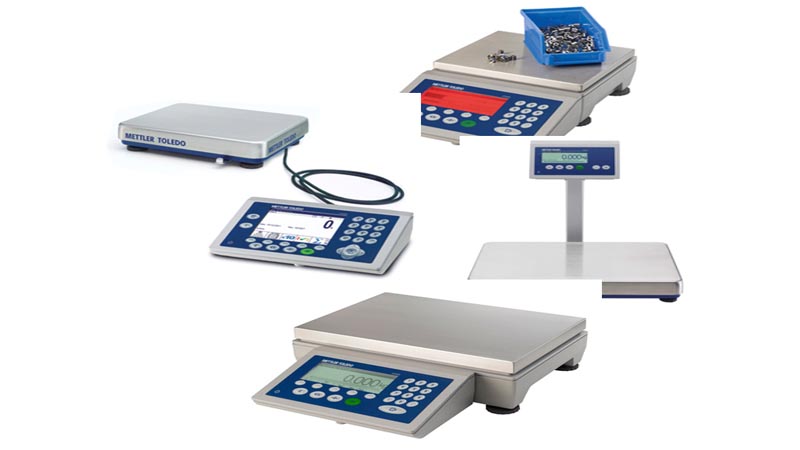

ICS Scales

Manufacturers Situation and Needs

Situation in weighing, counting and checkweighing

Time pressure

High quality requirements

Reduction of waste, overfilling

High complexity, e.g. thousands of parts

Rugged treatment of equipment

Needs
